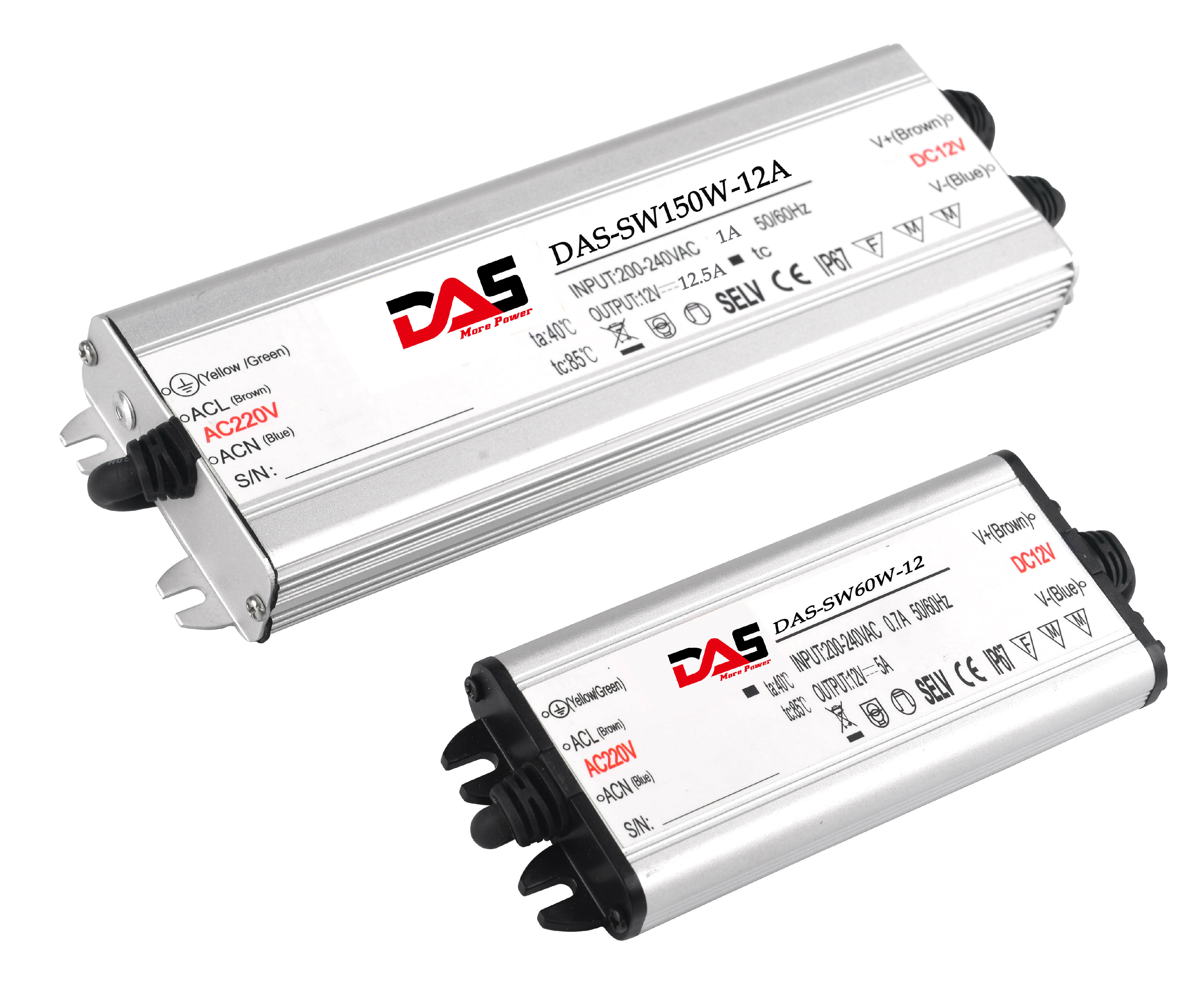

12V 24V UItra-thin LED Driver IP67 Power Supply

Current location：Home > Product

12V 24V UItra-thin LED Driver IP67 Power Supply: Model:; Next Previous

Detailed introduction

□ Withstand 300VAC surge input for 5 second
■ 可承受300VAC浪涌输入5秒

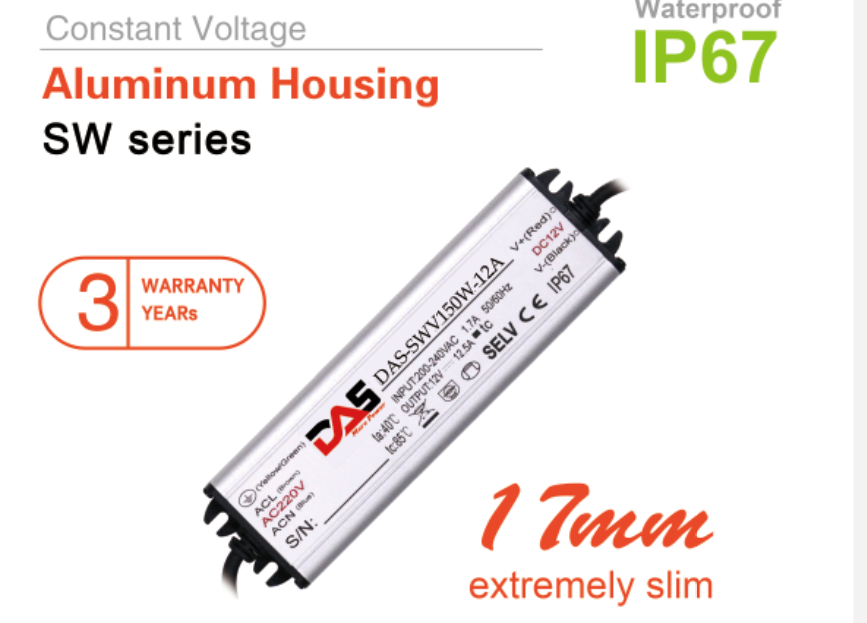

□ Extremely slim 17mm thickness，narrow small size,easy to install
■ 超薄壳体，厚度仅17mm，尺寸窄小，易安装
□ Protections:Short circuit/Overload/Over voltage
■ 保护类型：短路/过负载/过电压
□ Cooling by free air convention
■ 自然风冷
□ High efficiency,long life and high reliability
■ 高效率，长寿命，可靠性高
□ Over voltage category III
■ 过电压等级III
□ 100% full load burn-in test
■ 100%满载老化测试
□ 3 Years Warranty
■ 3年质保

PARAMETER
Item	Nominal Power	Output Voltage(DC)/Current	Input Voltage(AC)	Power Factor	Power efficiency	Dimension （LWH)mm	N.W (g)	IP Grade
DAS-SWV-12/24V-D20	20W	12V 1.66A/24V 0.83A	S	PF>0.6 PF>0.9	>85%	805717	180	IP67
DAS-SWV-12/24V-D30	30W	12V 2.5A/24V 1.25A				805717	180
DAS-SWV-12/24V-D40	40W	12V 3.33A/24V 1.67A				1005717	210
DAS-SWV-12/24V-D50	50W	12V 4.16A/24V 2.08A				1005717	210
DAS-SWV-12/24V-D60	60W	12V 5A/24V 2.5A				1105717	220
DAS-SWV-12/24V-D80	80W	12V 6.66A/24V 3.33A				1205717	250
DAS-SWV-12/24V-D100	100W	12V 8.33A/24V 4.16A				1405717	280
DAS-SWV-12/24V-D120	120W	12V 10A/24V 5A				1705717	360
DAS-SWV-12/24V-D150	150W	12V 12.5A/24V 6.25A				2005717	400
DAS-SWV-12/24V-D200	200W	12V 16.6A/24V 8.33A				2007025	760
DAS-SV-12/24V-D250	250W	12V 20.83A/24V 10.41A				2405717	800
DAS-SWV-12/24V-D300	300W	12V 25A/24V 12.5A				2408051	1800
DAS-SWV-12/24V-D400	400W	12V 33.33A/24V 16.66A				2408051	1800

Product Features
Overload protection	Range	5%	Type	Constant current auto-recovery
Over voltage protection	115-135% rated output power
Withstand voltage	I/P-O/P:3KVAC 5S		Working temperature		-40-60℃
Protection	Over Current /Short Circuit /Over Voltage protection
Safty standards	EN60950-1,EN61347-2-13

SPECIFICATION

OUTPUT 输出

DC VOLTAGE

12V/24V

输出电压

CURRENT (max)

1.67A(12V)

2.5A(12V)

3.35A(12V)

4.17A(12V)

5A(12V)

6.7A(12V)

8.3A(12V)

最大输出电流

0.83A(24V)

1.25A(24V)

1.67A(24V)

2.1A(24V)

2.5A(24V)

3.35A(24V)

4.17A(24V)

RATE POWER

20W

30W

40W

50W

60W

80W

100W

额定功率

RIPPLE & NOISE(max）

≥200MV

纹波与噪声

INPUT 输入

VOLTAGE RANGE

180-264V

输入电压范围

EFFICIENCY(Typ.)

85%

86%

88%

电源效率（典型值）

INRUSH CURRENT(Typ）

COLD START 冷启动 60A/230VAC

浪涌电流

LEAKAGE CURRENT

<2mA 230VAC

漏电流

PROTECTION 保护功能

OVERLOAD

110-150% rated output power.额定输出功率的110-150%

过载保护

Protection type:Hiccup mode recover automatically,打嗝模式,自恢复

OVER VOLTAGE

13.8-16.2V (12V) / 27.6-32.4V (24V)

过压保护

Protection type:Shut down o/p voltage，关断输出电压，重启恢复

OVER TEMPRETURE

Protection type:Shut down o/p voltage，关断输出电压，重启恢复

过温度保护

ENVIRONMENT 环境

WORKING TEMP

-30～+40℃

工作温度

WORKING HUMIDITY

20-80% RH non-condensing 无冷凝

工作湿度

STORAGE TEMP&HUMIDITY

10-90% RH non-condensing 无冷凝，-40～+60℃

储存温度及湿度

VIBRATION

10-500Hz,2G 10min/1cycle,period for 60min.each along X,Y,Z axes

振动

10-500Hz,2G 10分钟/周期 X,Y,Z 轴各60分钟

OVER VOLTAGE CATEGORY

III,Compliance to EN61558,EN50178,EN60664-1,EN62477-1

过电压等级

SAFETY & EMC 安规及电磁兼容性

SAFETY STANDARD

Compliance to EN60950-1,EN60335-1,EN61558-1/-2-16

安规标准

WITHSTAND VOLTAGE

I/P-O/P:3KVAC, I/P-FG:2KVAC, O/P-FG:0.5KVAC

耐压指标

EMC EMISSION

N/A

电磁兼容辐射

EMC IMMUNITY

N/A

电磁兼容抗扰度
